DUCTWORK

Factory Built Grease Duct Systems. UL listed, requires No Welding – Single Wall & Reduced Clearance: UL1978 and
Double Wall Zero Clearance: UL1978 & UL2221, Limited Lifetime Warranty.

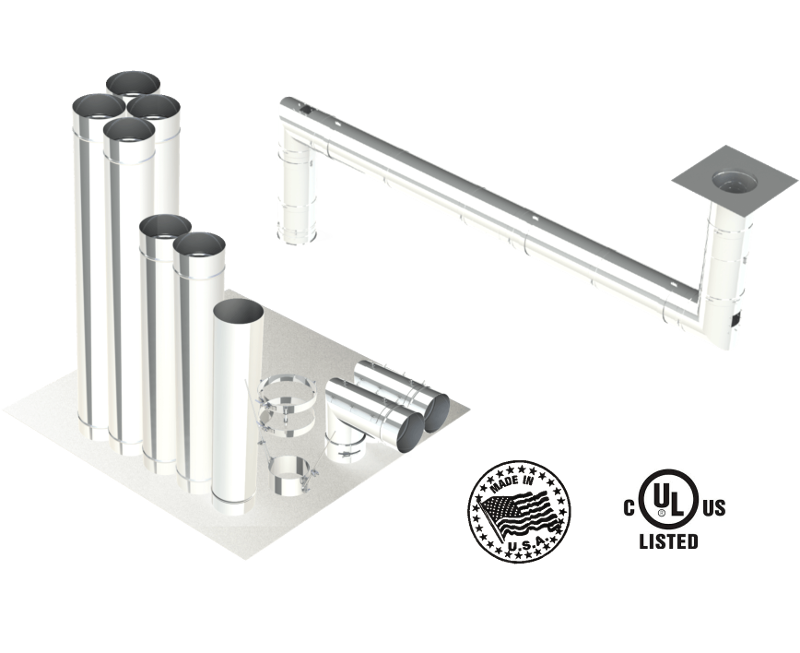

State of the art Stainless Steel grease duct systems are NFPA-96 compliant, designed to safely convey grease laden vapors from commercial kitchen cooking equipment. Combining industry leading performance with ease of installation, NAKS factory-built grease duct systems incorporate a steel to steel overlapping conical joint which requires no field welding. This joint design critically protects the seal surface and withstands high pressure washings. Double wall and large diameter single wall options incorporate flanged connections and clamp bands for maximum rigidity. Innovative accessories including cutable lengths, built in access doors on offsets, and no weld hood adapters all combine to make this your best ducting option.

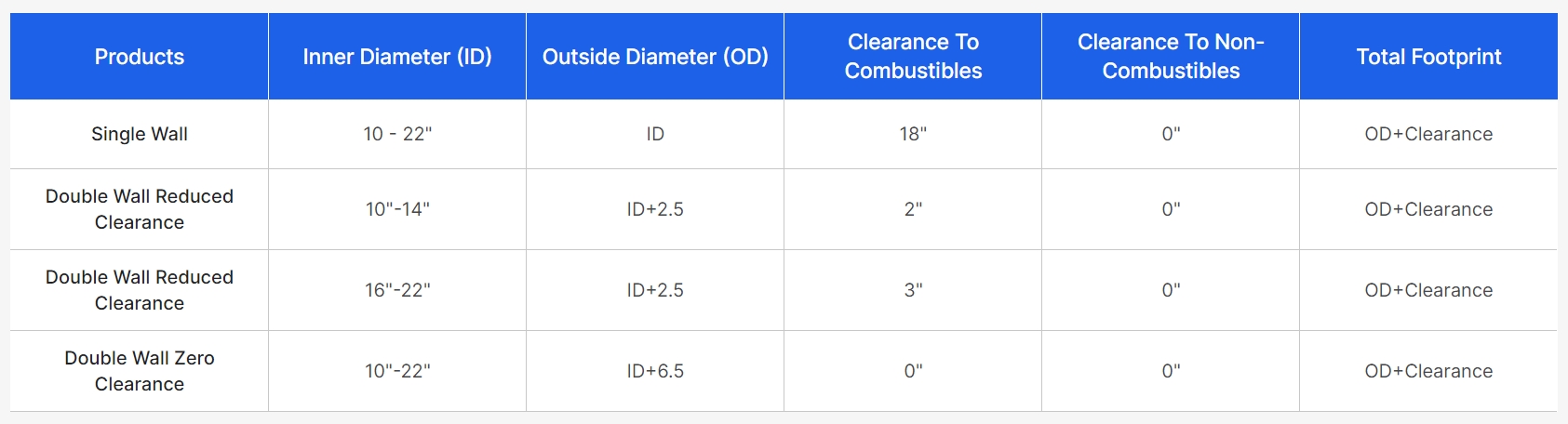

NAKS Grease Duct Product Offering

Products

Inner Diameter (ID)

Outside Diameter (OD)

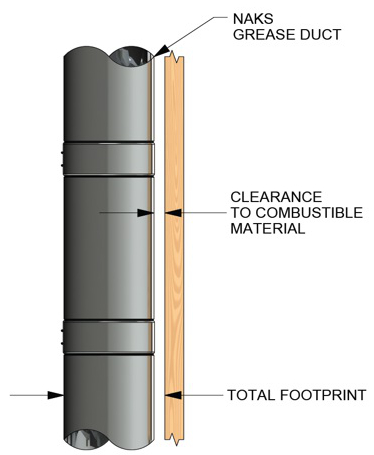

Clearance To Combustibles

Clearance To Non-Combustibles

Total Footprint

Single Wall

10 - 22"

ID

18"

0"

OD+Clearance

Double Wall Reduced Clearance

10"-14"

ID+2.5

2"

0"

OD+Clearance

Double Wall Reduced Clearance

16"-22"

ID+2.5

3"

0"

OD+Clearance

Double Wall Zero Clearance

10"-22"

ID+6.5

0"

0"

OD+Clearance

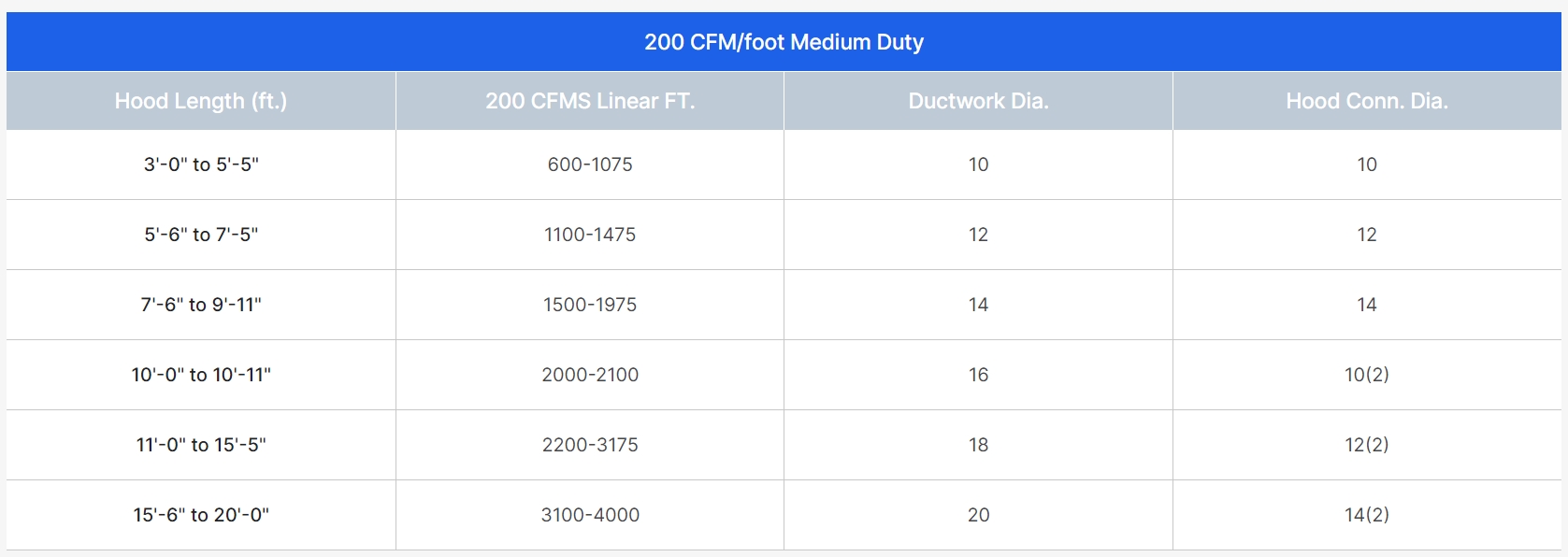

200 CFM/foot Medium Duty

Hood Length (ft.)

200 CFMS Linear FT.

Ductwork Dia.

Hood Conn. Dia.

3'-0" to 5'-5"

600-1075

10

10

5'-6" to 7'-5"

1100-1475

12

12

7'-6" to 9'-11"

1500-1975

14

14

10'-0" to 10'-11"

2000-2100

16

10(2)

11'-0" to 15'-5"

2200-3175

18

12(2)

15'-6" to 20'-0"

3100-4000

20

14(2)

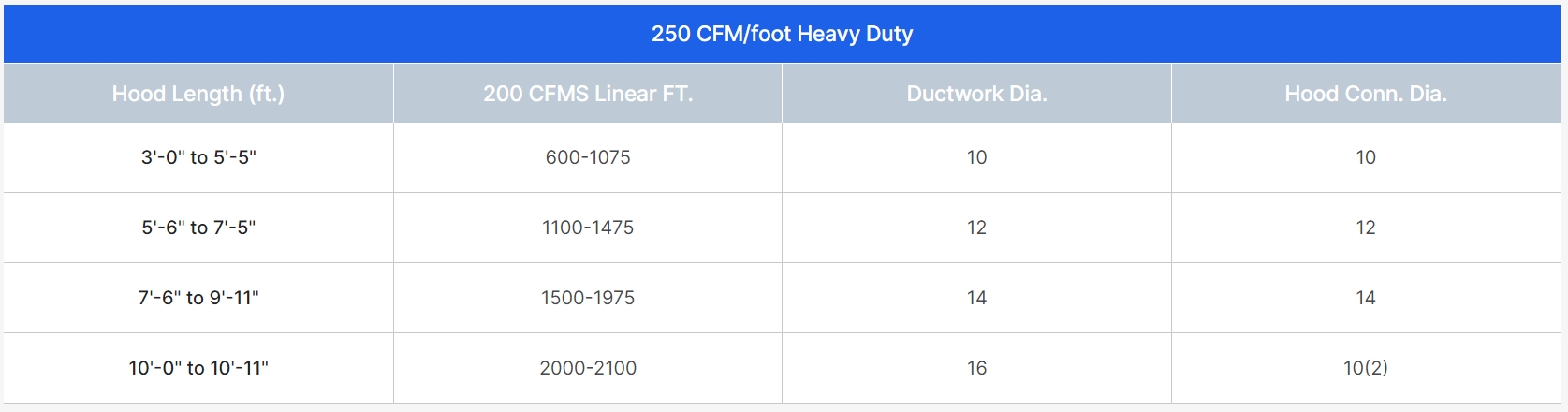

250 CFM/foot Heavy Duty

Hood Length (ft.)

200 CFMS Linear FT.

Ductwork Dia.

Hood Conn. Dia.

3'-0" to 5'-5"

600-1075

10

10

5'-6" to 7'-5"

1100-1475

12

12

7'-6" to 9'-11"

1500-1975

14

14

10'-0" to 10'-11"

2000-2100

16

10(2)
